Export script from Hobbyist version

Home English Export script from Hobbyist version

Engineer Cat 2024-11-12 06:57:22
2 voices
6 replies
  • Author
    Posts
  • Engineer Cat
    Joined: Jan 2023
    Posts: 35
    Location: New Jersey, United States
    Newcomer
    Likes:

    Originally I was going to use Starfire to shoot this show but due to cutting the show down significantly I decided to use Firelinx to shoot it. However no matter what I change, It keeps wanting to export the script as Starfire. Even though I have all the addressing set with Firelinx. I don’t know what I need to change to make sure it saves as a Firelinx script.

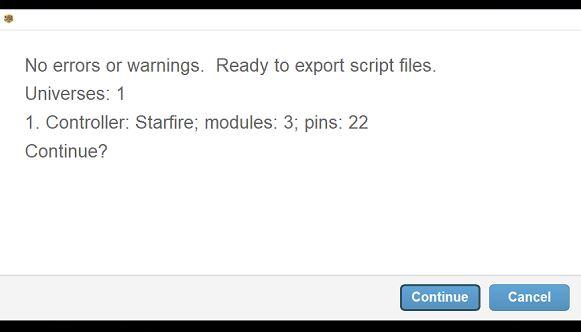

    When I try to export the script it shows.





    DrewFinale
    Joined: Dec 2019
    Posts: 557
    Location: United States
    Silver
    Likes:

    Hi Engineer Cat, send your show (.FIN) file to support@finale3d.com and we’ll take a look right away.

    Engineer Cat
    Joined: Jan 2023
    Posts: 35
    Location: New Jersey, United States
    Newcomer
    Likes:

    Thanks Drew, just sent it.

    DrewFinale
    Joined: Dec 2019
    Posts: 557
    Location: United States
    Silver
    Likes: 1

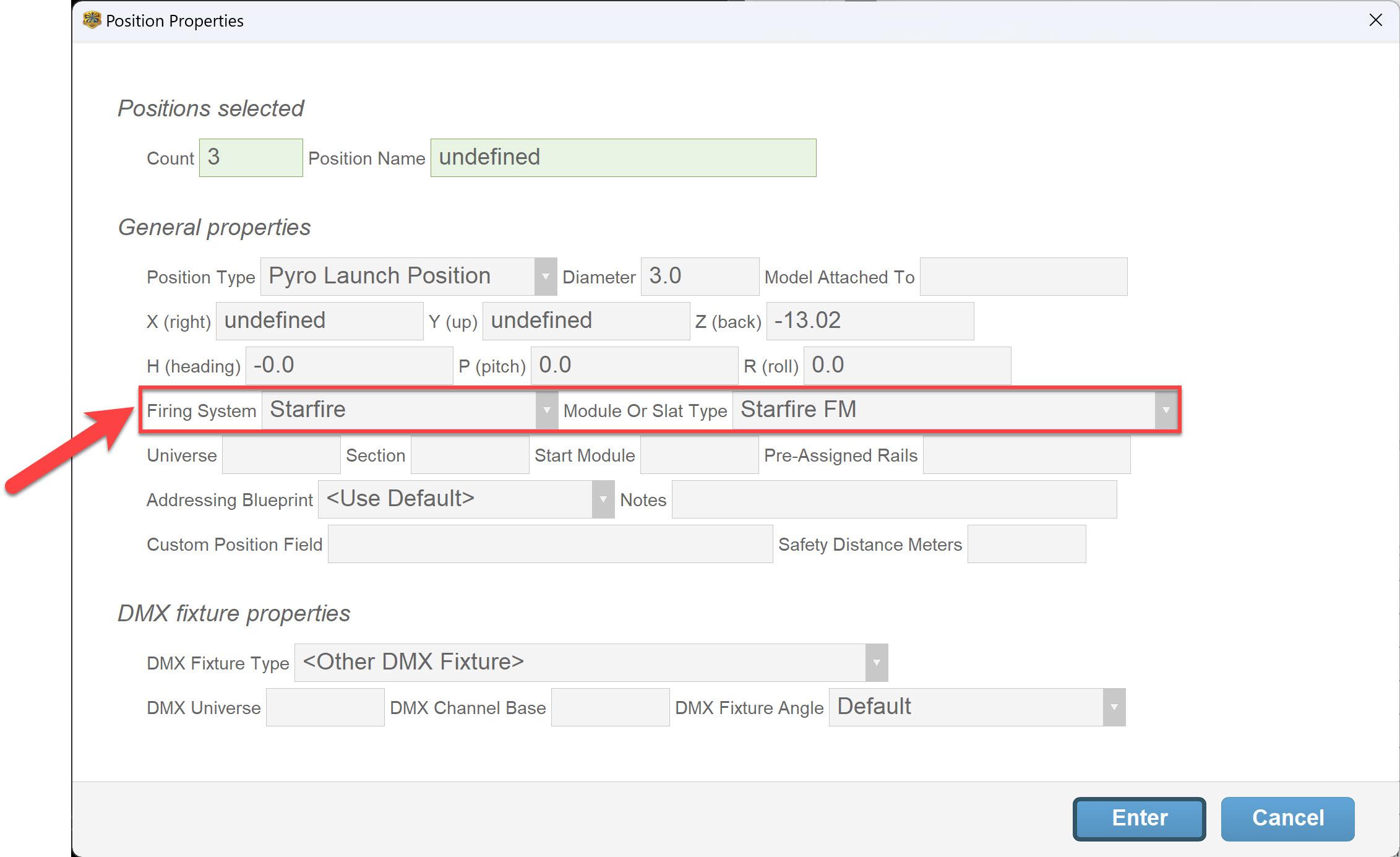

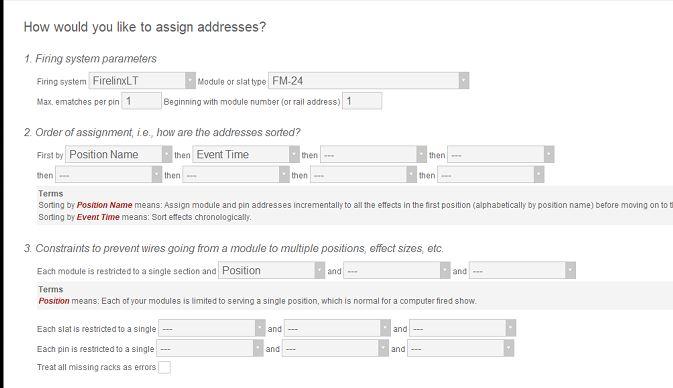

    Your show is being addressed for StarFire even though Firelinx is selected in the Address Show dialog because your positions are configured to use StarFire. When a position is configured to use a specific firing system, that overrides the selection in the Address Show dialog. When using the same firing system/module type for an entire show (as I think is the case with this show), there’s no need to specify the firing system or module type on a per-position basis. To fix your show, select all positions, right click on any selected position, select Edit position properties, and set the Firing System and Module Or Slat Type settings to the <Use Default> option. Once you’ve set your positions to use the default firing system, simply readdress your show and you should be all set.



    Engineer Cat
    Joined: Jan 2023
    Posts: 35
    Location: New Jersey, United States
    Newcomer
    Likes:

    Thanks Drew. Totally overlooked the position descriptions. Very simple fix.



    Thank You!

    Engineer Cat
    Joined: Jan 2023
    Posts: 35
    Location: New Jersey, United States
    Newcomer
    Likes:

    Drew I sent another email about the script not looking right. I attached the files to that email. Just an FYI.  Thank You



    DrewFinale
    Joined: Dec 2019
    Posts: 557
    Location: United States
    Silver
    Likes:

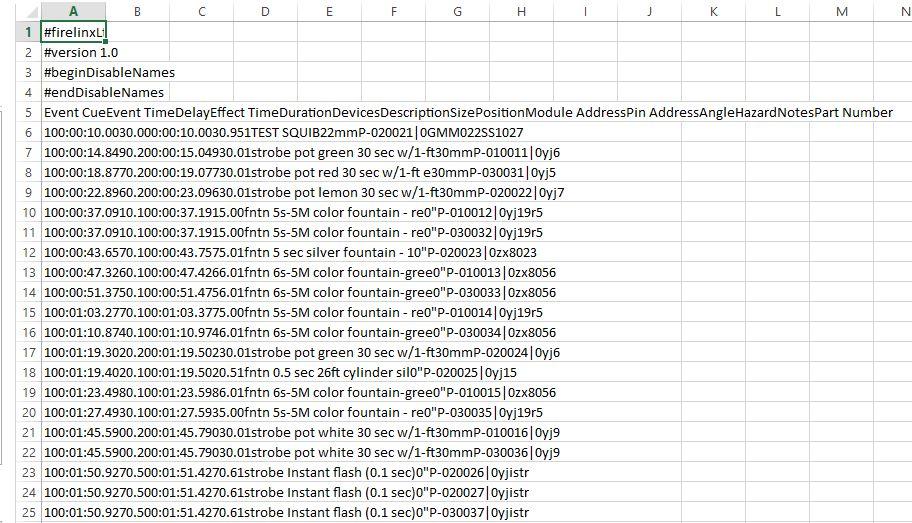

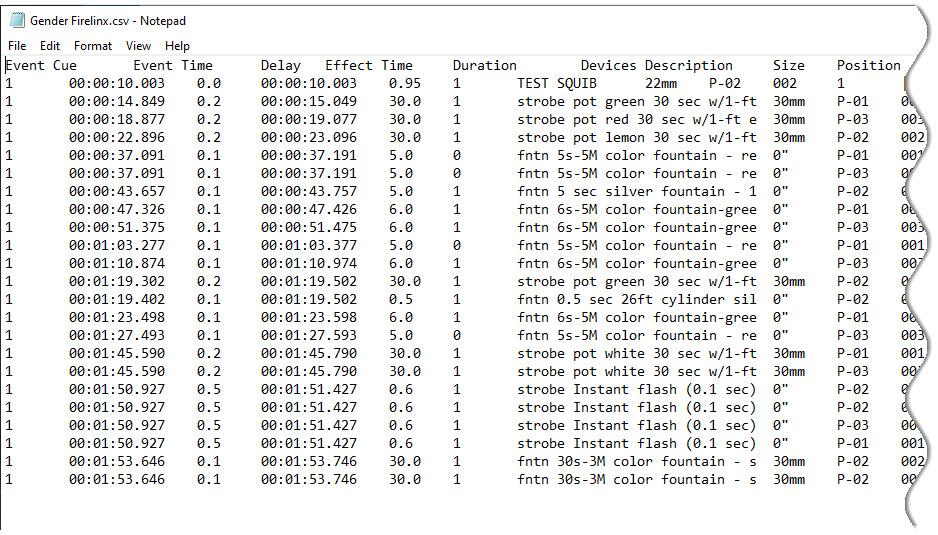

    The Firelinx script file format is a tab delimited text file with a CSV file extension. Excel simply isn’t recognizing the tabs as delimiters and erroneously displaying all the data in a single column. If you open the script file in Notepad, you’ll see the tab characters represented as white space between each column/field.
